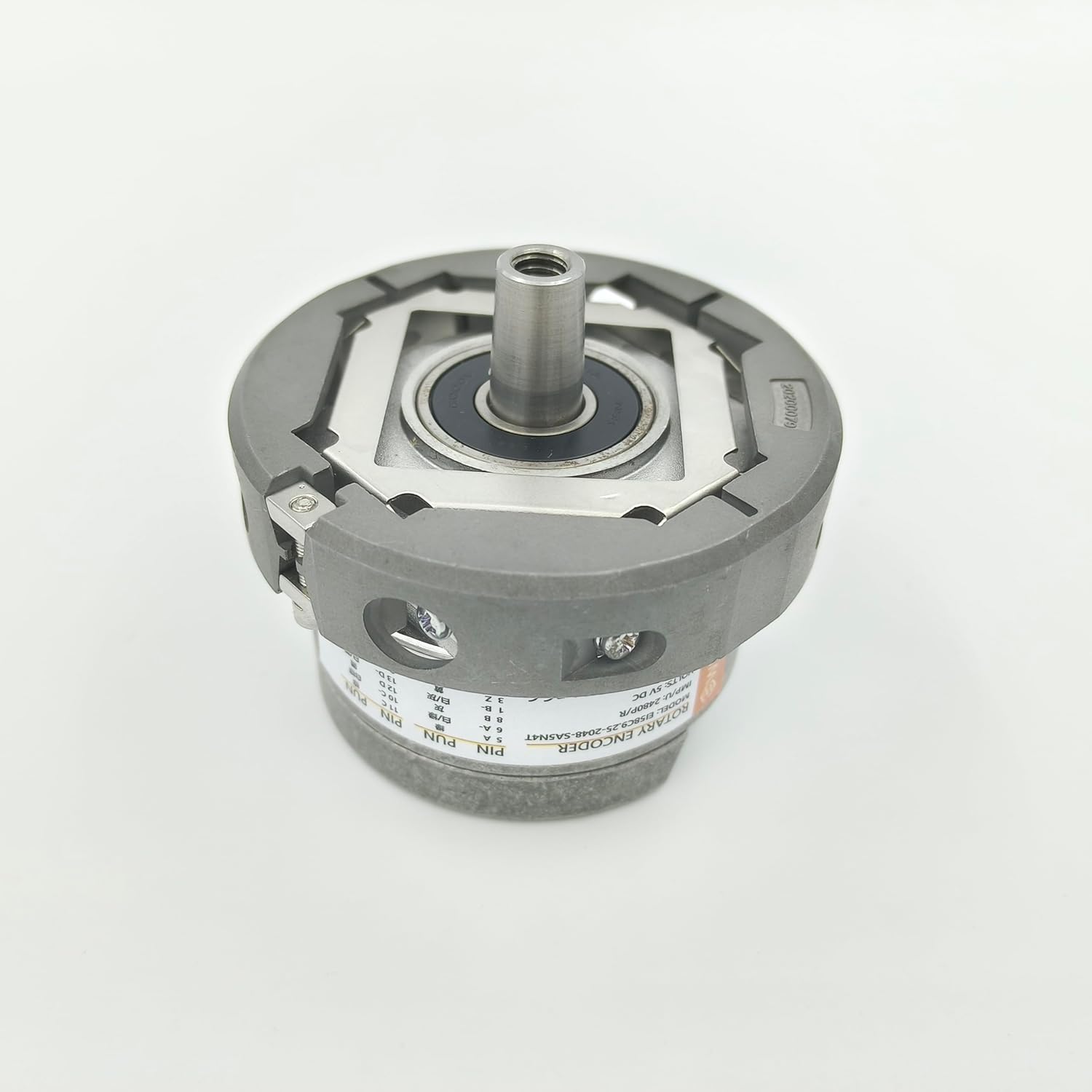

EI58C9.25-2048-SA5N4TE Rotary Encoder, 2048 P/R Resolution, Sine-Cosine Output, Industrial Automation

This high-precision rotary encoder (model EI58C9.25-2048-SA5N4TE) delivers exceptional accuracy with 2048 pulses per revolution, making it ideal for elevator control systems and other demanding automation applications. The device outputs high-quality sine-cosine differential signals with precise amplitude control (Vpp=1V±0.2V) and features robust mechanical specifications including 10N axial and radial load capacity. Operating reliably across a wide temperature range from -20°C to +120°C (-4°F to 248°F), this encoder provides excellent performance in challenging industrial environments. The unit offers multiple output signals (A, A-, B, B-, C, C-, D, D-) with proper phase relationships for accurate position feedback. Built to withstand shock resistance of 10G and vibration resistance of 50m/s, this durable encoder maintains IP40 protection rating for dependable operation. The clockwise rotation configuration and comprehensive signal output make it particularly well-suited for precise motion control applications where reliable position feedback is critical.

• PRECISION ENCODER: High-resolution 2048 pulse per revolution (PPR) rotary encoder with sine-cosine output signals for precise position measurement

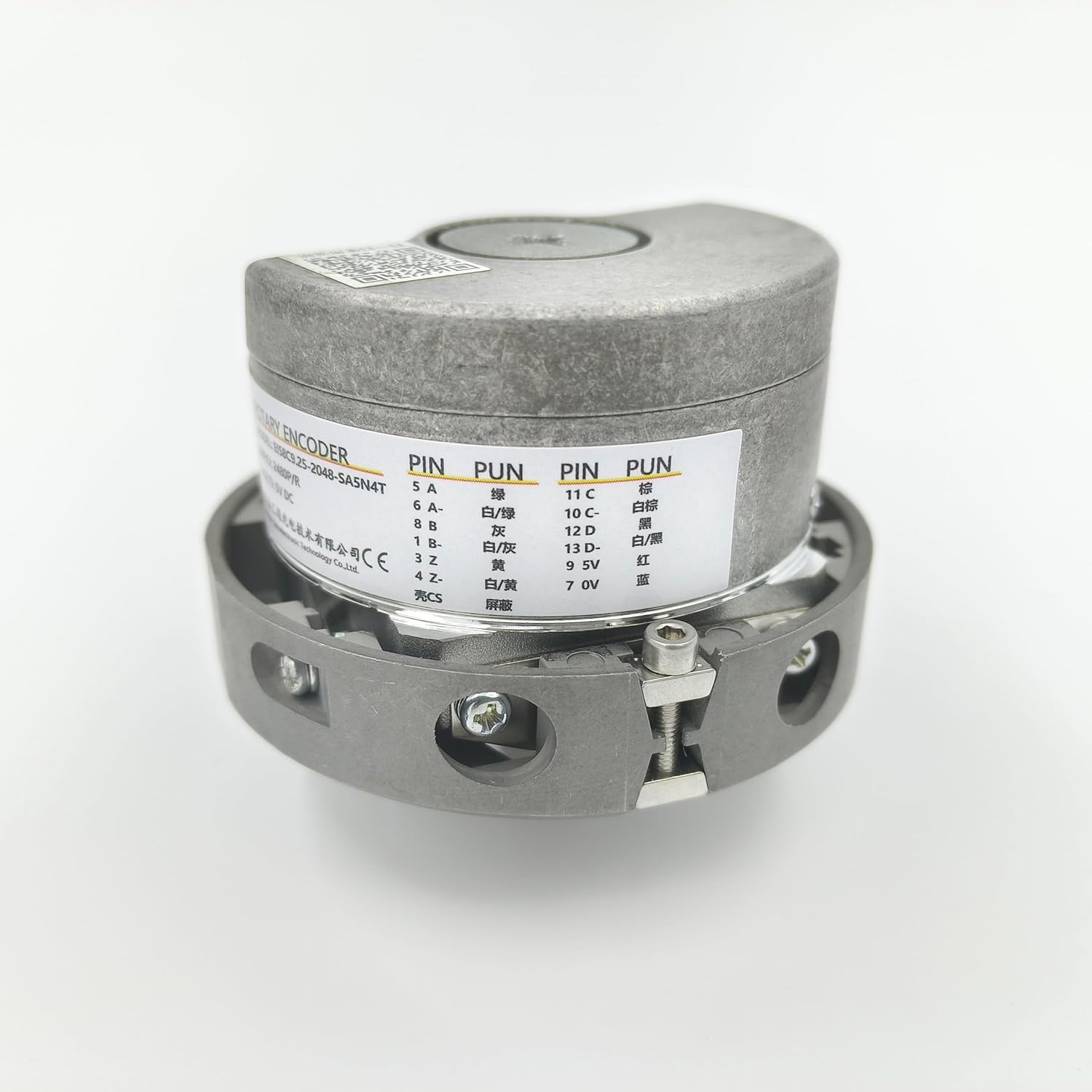

• SIGNAL OUTPUT: Features differential output signals (A, A-, B, B-, C, C-, D, D-) with 90-degree phase relationships for accurate position tracking
• OPERATING SPECS: Operates in temperature range of -4°F to 248°F with IP40 protection rating and 10N axial/radial load capacity
• PERFORMANCE: Delivers 1V±0.2V peak-to-peak output amplitude with low 2% waveform distortion for reliable measurement
• DURABILITY: Withstands shock resistance of 10G for 11ms and vibration resistance of 50m/S between 40-200Hz in XYZ directions
