Mudder 10 Pcs Air Conditioning Refrigerant Compact Ball Valve 1/4 Inch Compatible with HVAC Adapter R410A R134A R12 R22 5/16inch Female to 1/4inch Male Flare(4 Straight Ball Valve, 6 Adapter,Gold)
Product details
| Management number | 234257771 | Release Date | 2026/06/27 | List Price | US$12.40 | Model Number | 234257771 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features: 1/4 Inch male and 5/16 inch female adapter. Compatible with R410A mini split system air conditioners and HVAC refrigeration service. The thimble of the connector is protected against fluoride leakage. Made of brass alloy, access valves high tensile strength while resisting corrosion. Easy to operate and install. Specifications: Material: brass alloy Color: red, yellow, blue, black Package includes: 4 Pieces of Straight compact ball valves 2 Pieces of Straight adapter for mini split system 2 Pieces of 45 Degree adapter for mini split system 2 Pieces of 90 Degree adapter for mini split system Notes: Manual measurement, please allow slight errors on size. The color may exist a slight difference due to different screen displays.
- You Will Receive: 4 pieces of straight ball valves and 6 pieces of useful adapters (include 2 pieces of straight adapter and 2 pieces of 45 degree adapter and 2 pieces of 90 degree adapter), totally 10 pieces can meet your needs

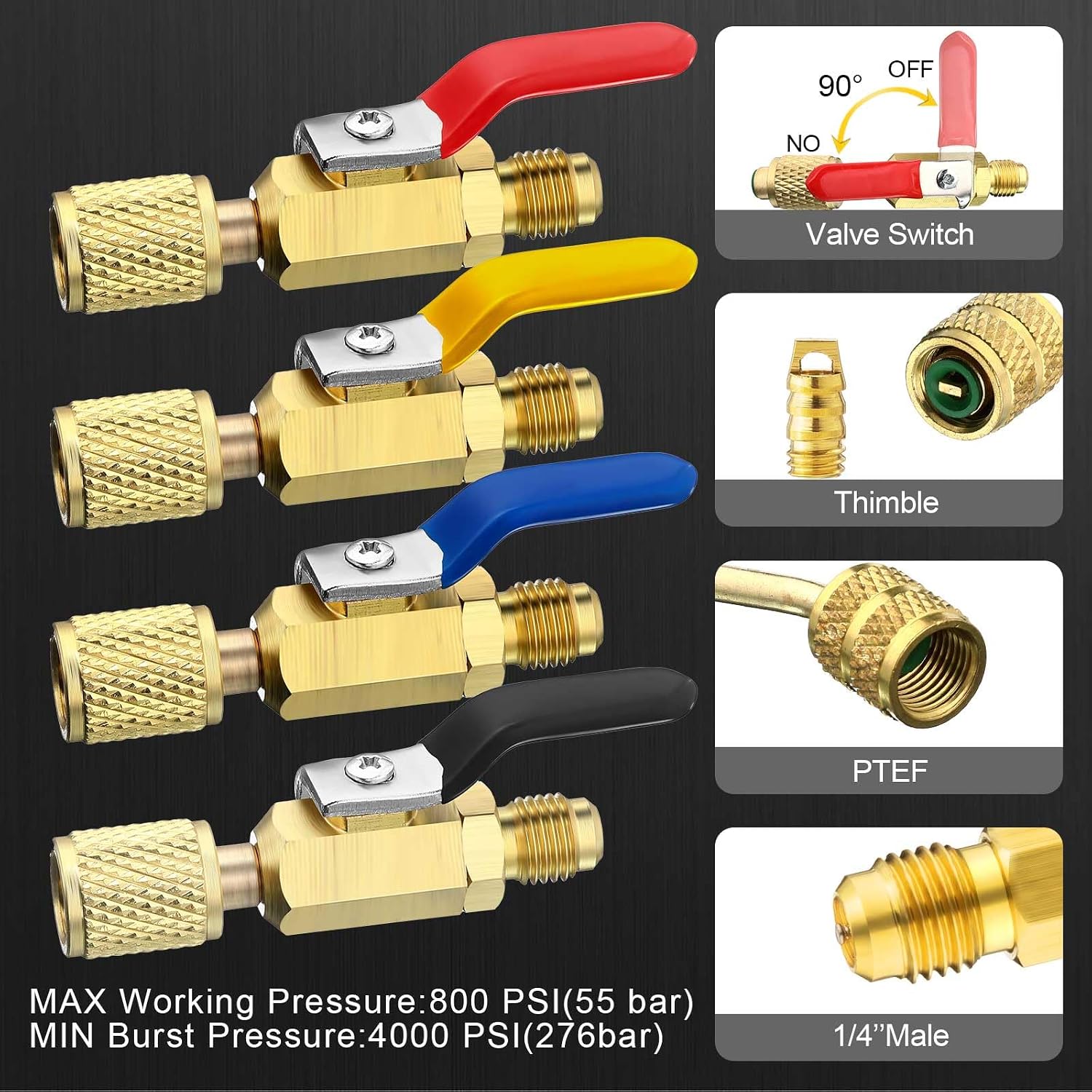

- Straight Ball Valve: straight manual close up valve with 1/4 inch male and female fitting; The couplers nuts are deeply knurled for quick finger tightening, 800 psi (55 bar) maximum working pressure and 4000 psi (276 bar) minimum burst pressure
- Adapter for Mini Split System: converts the 5/16 inch charging vacuum ports (R410a style) to accept 1/4 inch gauge hose set, 1/4 inch male and 5/16 inch female adapter; This connector has a thimble, it will not open the air conditioning core tube while operating, good to solve the problem of leakage
- Quality Sets: made by quality brass alloy, last long; Easy to operate and install, strong sealing for durability and safety; Built in quality rubber gasket, features with anti leakage
- Wide Application: can be added to hoses for charging and recovery, air conditioning refrigerant ball valve compatible with refrigerant R134A, R410A, R22 and R12 charging hoses or manifold; They are necessary tools compatible with HVAC, car air condition maintenance; Tip: just tighten it during installation and use, and there is no need to use too much force to cause to the sealing device and leakage
| ASIN | B0D22M57D3 |
|---|---|
| Size | 1.96 inches |
| Set Name | 4 Straight Ball Valve, 6 Adapter |
| Brand Name | Mudder |
| Unit Count | 10.0 Count |
| Valve Type | Ball Valve |
| Item Weight | 1.1 Pounds |
| Thread Size | 1/4 inch male and 5/16 inch female |
| Thread Type | Flare |
| Manufacturer | Mudder |
| Model Number | / |
| Material Type | Brass |
| Connector Type | Flare |
| Item Type Name | / |
| Exterior Finish | Brass |
| Item Dimensions | 3.35 x 2.36 x 2.36 inches |
| Number of Ports | 6 |
| Maximum Pressure | 800 Pound per Square Inch |
| Number of Pieces | 10 |
| Included Components | / |
| Inlet Connection Size | 0.25 Inches |
| Inlet Connection Type | Flare |
| Outlet Connection Size | 0.25 Inches |
| Outlet Connection Type | Flare |
| Manufacturer Part Number | Mudder-fittings -26 |
| Manufacturer Warranty Description | / |
